š Last updated: September 2025
Iām sharing a collection of PCB layout designs together with their corresponding circuit schematics. All of these projects are available for download in my GitHub repository.
The following projects were developed as part of a KiCad Udemy course, which I completed to get more familiar with the software.

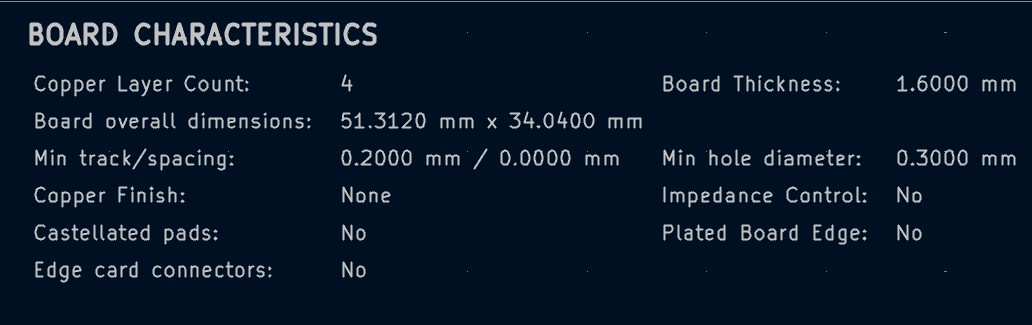

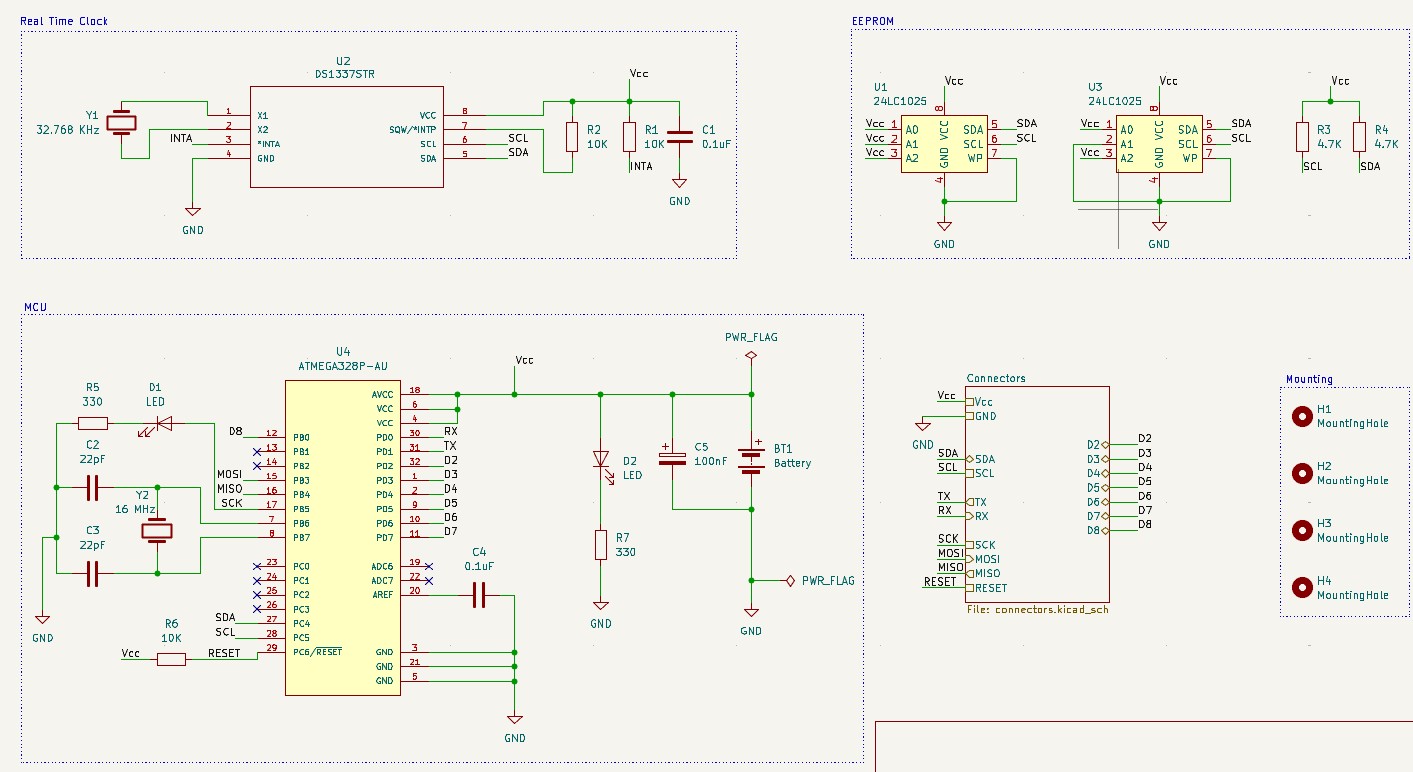

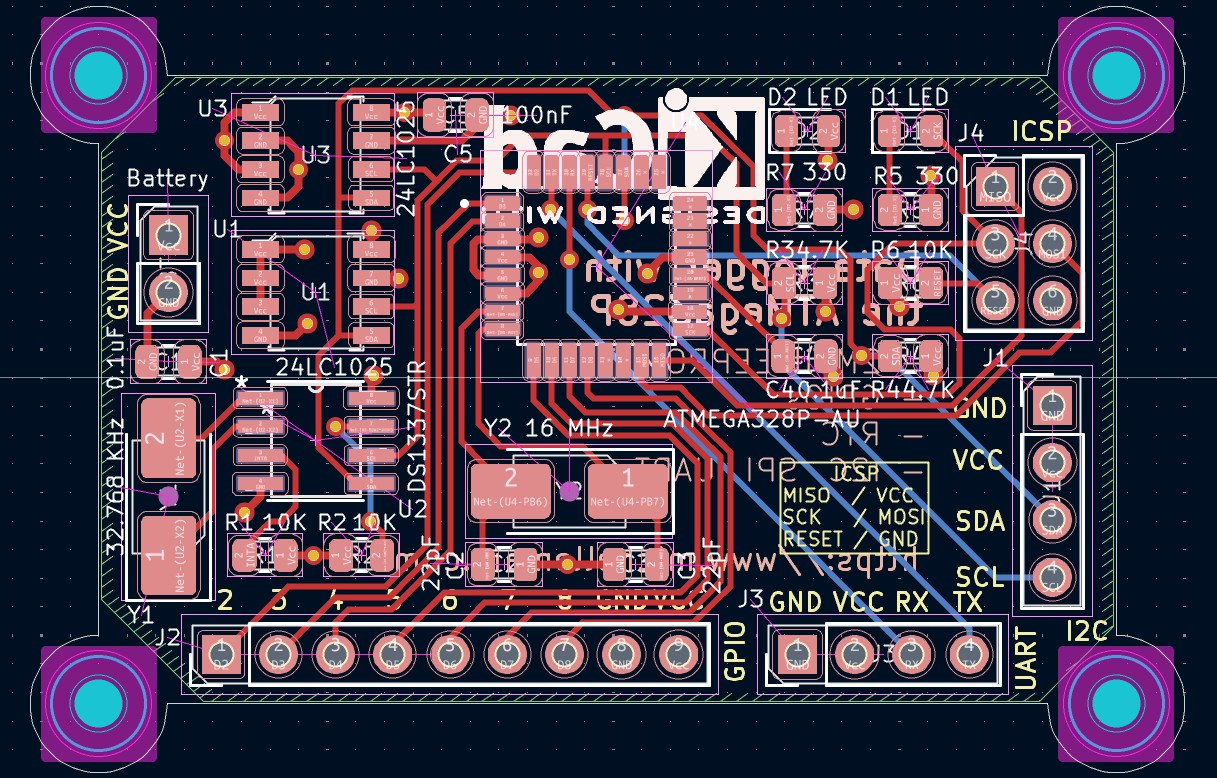

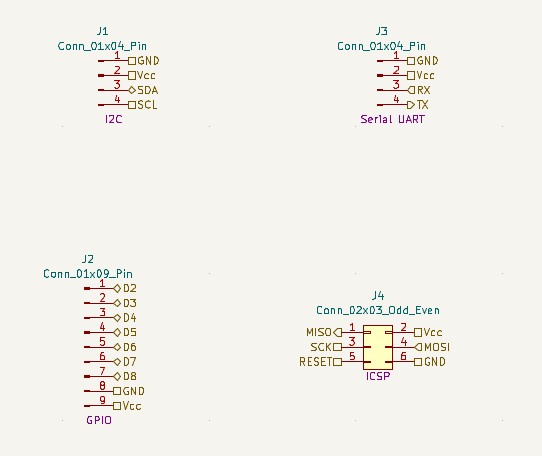

MCU Datalogger ā a ATMEGA328 microcontroller-based system for data recording
MCU Datalogger – Interactive BOM
Tiny Solar Power Supply ā a compact power supply powered by solar energy
Breadboard Power Supply ā a handy regulated power source for prototyping
LED Torch ā a simple circuit using just a battery and an LED
